ROOF DECK

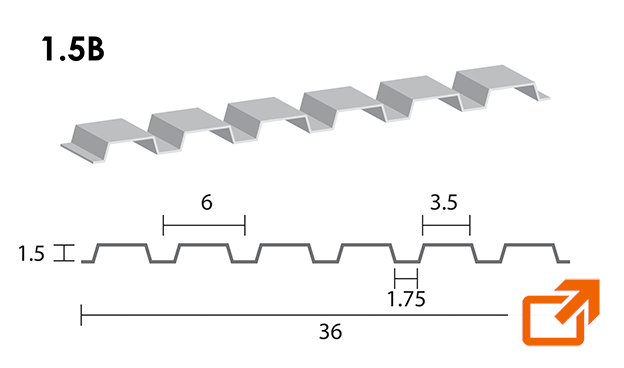

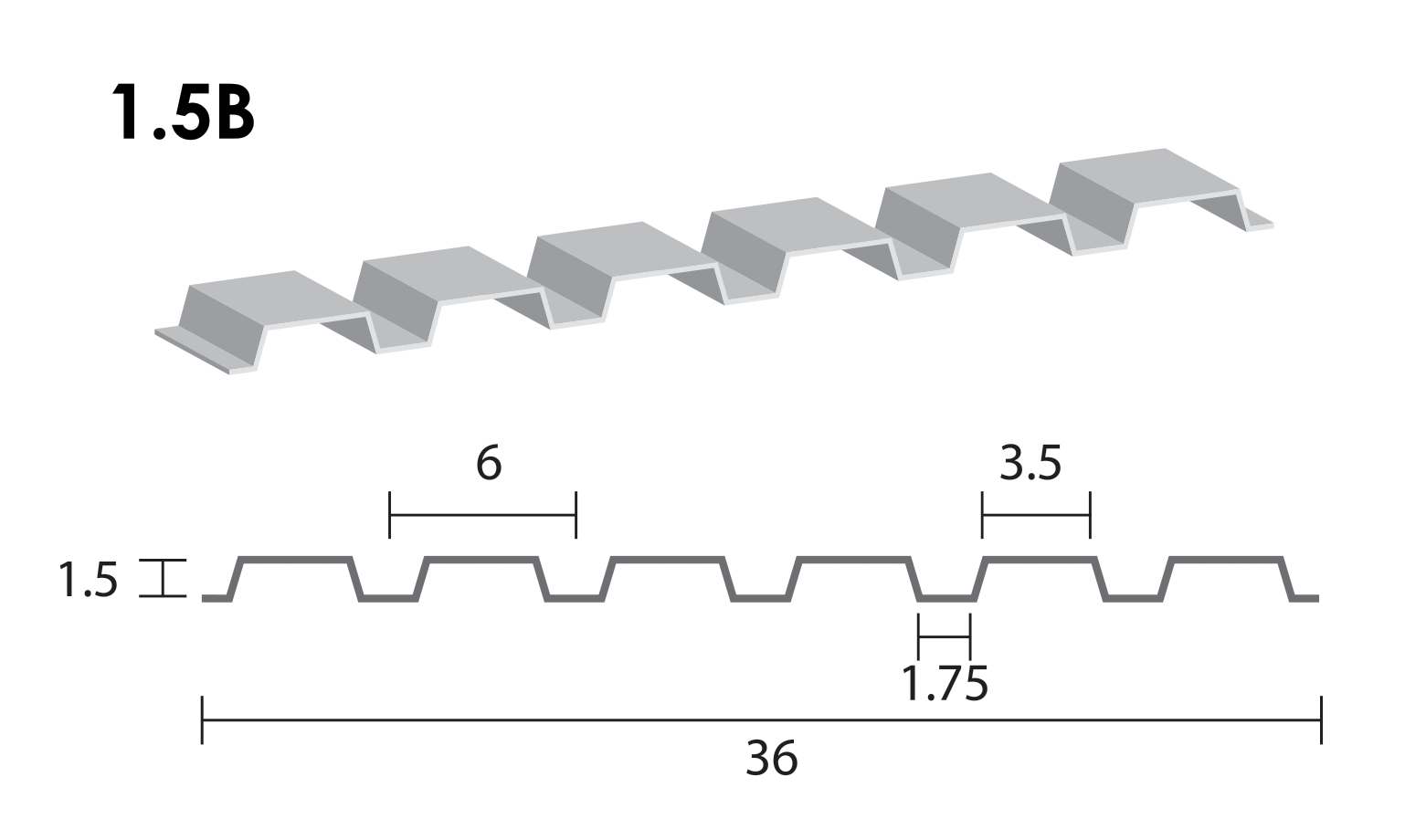

1.5 B
Wide Rib deck provides the best balance of strength and economy. Prime Painted Gray Top / Gray Bottom or Gray Top / White Bottom. Galvanized G60 or G90. Available with nested side laps only. Acoustic and Cellular available

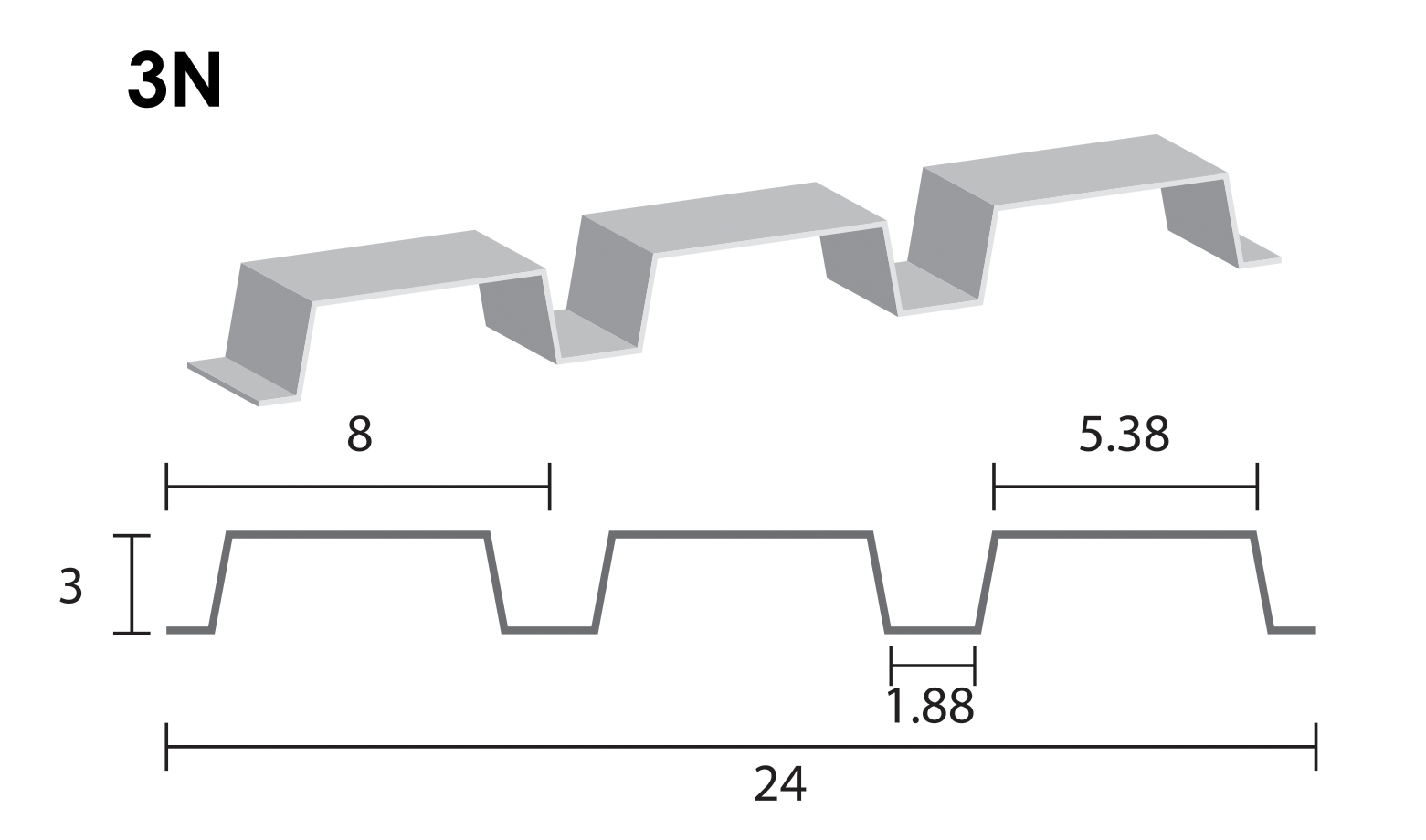

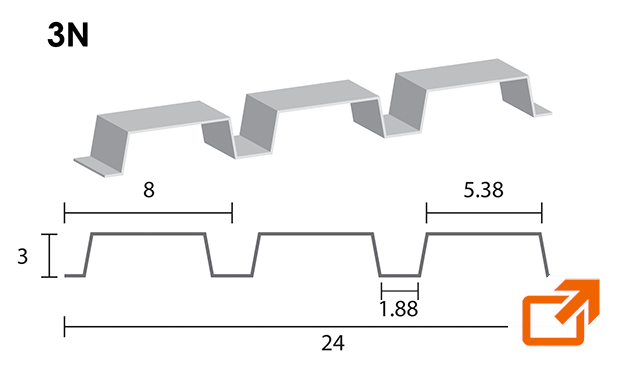

3.0 N
Deep Rib deck is well suited for applications where it is desirable to space the supporting members as far apart as possible. Prime Painted Gray Top / Gray Bottom. Galvanized G60 or G90. Available with nested side laps only. Acoustic and Cellular available

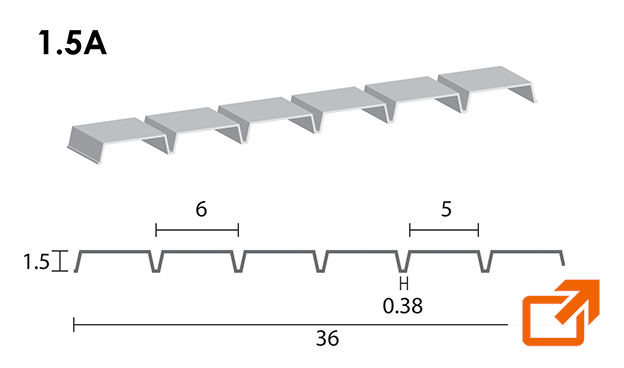

1.5 A
Narrow Rib deck provides an economical roof system when utilized with thinner insulation and allows maximum area for adhesive contact. Prime Painted Gray Top / Gray Bottom. Available with nested side laps only.

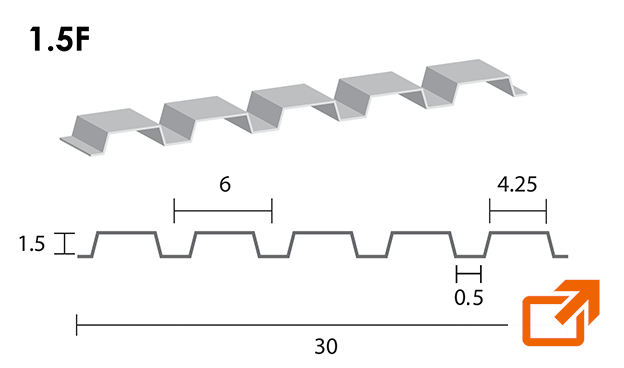

1.5 F
Intermediate Rib deck is designed to provide the most economical combination of structural load carrying capacity and insulation materials. Prime Painted Gray Top / Gray Bottom. Available with nested side laps only
